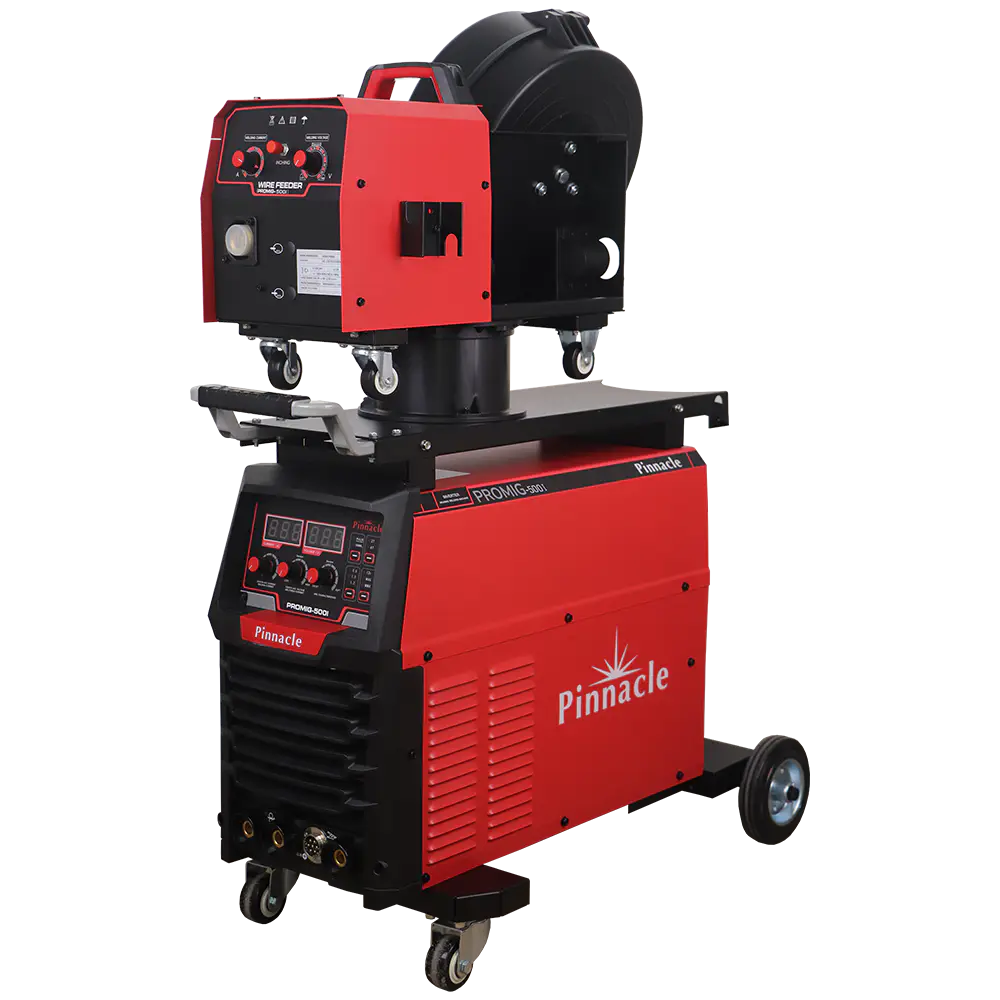

Pinnacle PROMIG 500I MIG Welding Machine
Experience the pinnacle of welding excellence with the Pinnacle PROMIG 500I Welding Machine. Utilizing advanced IGBT Full Bridge Module Technology, it delivers high-speed welding with minimal spatter, ensuring impeccable welds every time. Benefit from precise waveform control powered by the UWC algorithm and enjoy seamless operation through its fully digital control system and user-friendly man-machine interface. Designed to support automation with an automatic welding port, including robot integration capabilities, the PROMIG 500I is the ultimate choice for professionals seeking superior welding performance and efficiency. Upgrade your welding experience with Pinnacle’s cutting-edge technology and achieve precision and reliability in every weld.
| Input Power Voltage (V) | AC 380V +- 15%, 1PH |
| Input Voltage Frequency (Hz) | 50/60 |
| Rated Input Power (kV) | 24kV |
| Rated Input Current (A) | 40A |
| Output Current Range (A) | 50-500A |
| Rated Duty Cycle (%) | 500A/39V – 100% |
| Efficiency (n) | 85% |
| No Load Voltage (V) | 80V |
| Welding Wire Size (mm) | 0,8-1,6mm |
| Gas Flow (L/min) | 15 ~ 20L/min |
| Insulation Class | H |
| Protection Class (IP) | IP21S |
