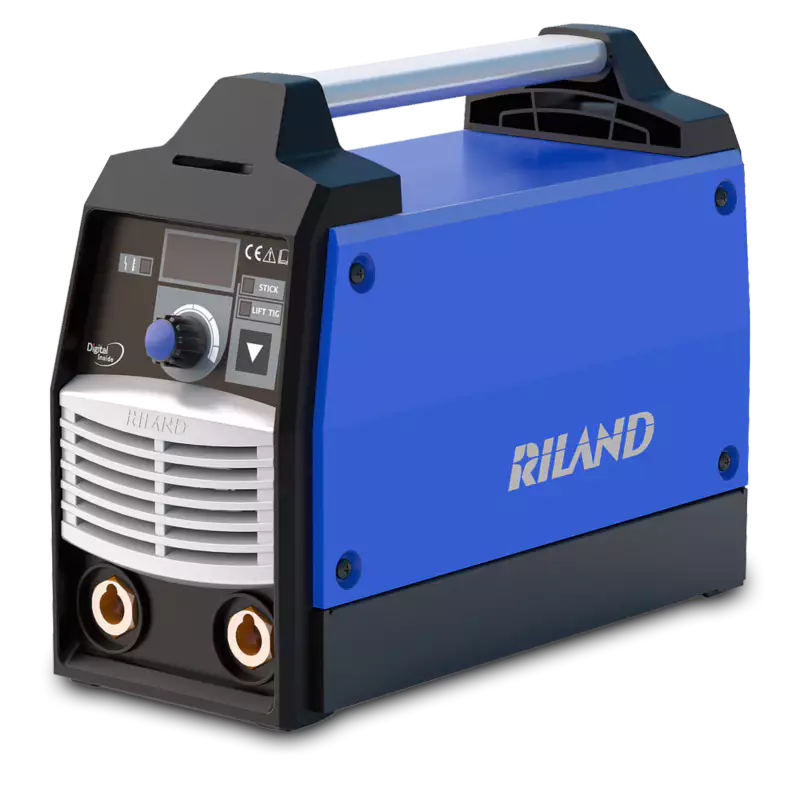

RILAND MMA 160GDM MMA/TIG Welding Machine

  • 160Amp 230v 50/60Hz
  • MMA Welding
  • LIFT TIG Welding
  • MCU Built-in.
  • Self Adaptive ARC Force and Hot Start build-in, Anti-Sticking
  • Fan as needed, reduces noise and dust inside the machine


RILAND MMA 160GDM MMA/TIG Welding Machine

The Riland MMA 160GDM MMA/TIG Welding machine is a 160Amp digital industrial MMA/TIG welder that offers non-stop welding for 2.5mm and 3.0mm welding electrodes. The cooling fan is configured for advanced silent, only coming on when needed reducing the noise and an added benefit of this is that it reduces the dust intake into the machine, extending the welder’s lifespan.


Input Voltage V 230V +- 10%
Input Voltage Frequency Hz 50/60Hz
Output Current A 160A 90A 160A 100A
Output Voltage V 26.4 23.6V 16.4V 14V
Duty Cycle (40’C) % 20% 100% 25% 100%
AMPS Input at Rated Output A 35.5A @ 160A 25.2A @ 160A
Output Range A 10-160A
No-Load Voltage V 62V 16V
Dimensions mm 288 x 136 x 234mm
Weight kg 4.8kg




DownloadRILAND MMA 160GDM MMA/TIG Welding Machine Datasheet
