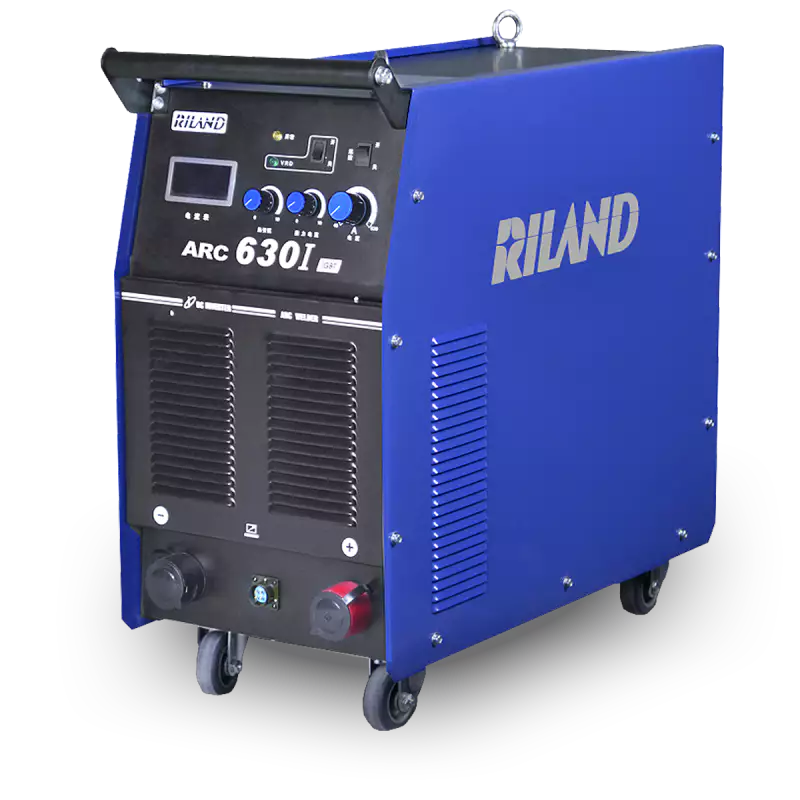

RILAND ARC 630I MMA/Gouge Welding Machine

  • 630 Amp 380v 50/60Hz
  • Heavy duty, nonstop working under 40 degree conditions
  • MMA Welding
  • ARC Gouging Welding
  • IGBT Technology
  • Self Adaptive ARC Force and  Adjustable Hot Start build-in
  • Anti-Sticking
  • Adjustable VRD

Description

RILAND ARC 630I MMA/Gouge Welding Machine

The RILAND ARC 630I MMA/Gouge Welding Machine is a heavy industrial welding device with a power output of 630 Amps. It is versatile, supporting various electrode types, and is highly recommended for use with 5.0mm welding electrodes. The Tri-Proof Air Duct System integrated into the machine serves a dual purpose by enhancing cooling efficiency and safeguarding against the infiltration of foreign particles.



Input Voltage V 380V +- 10%
Input Voltage Frequency Hz 50/60Hz
Output Current A 630A 488A
Output Voltage V 44V 39.5V
Duty Cycle (40’C) % 60% 100%
AMPS Input at Rated Output A 53.1A @ 630A
Output Range A 50-630A
No-Load Voltage V 90V
Dimensions mm 650 x 310 x 640mm
Weight kg 54kg

Downloads

Datasheet

DownloadRILAND ARC 630I MMA/Gouge Welding Machine Datasheet

Manual

User GuideRILAND ARC 630I MMA/Gouge Welding Machine User Manual
